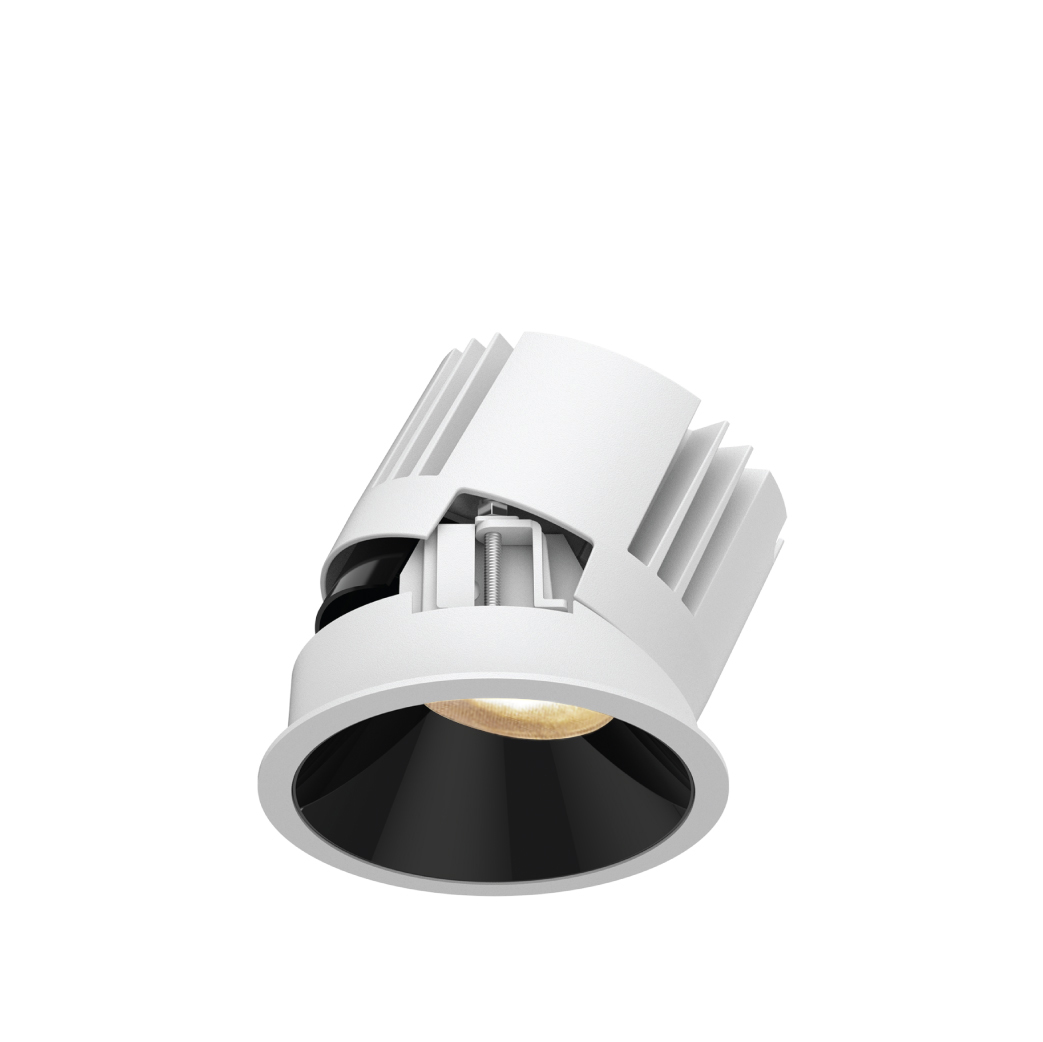

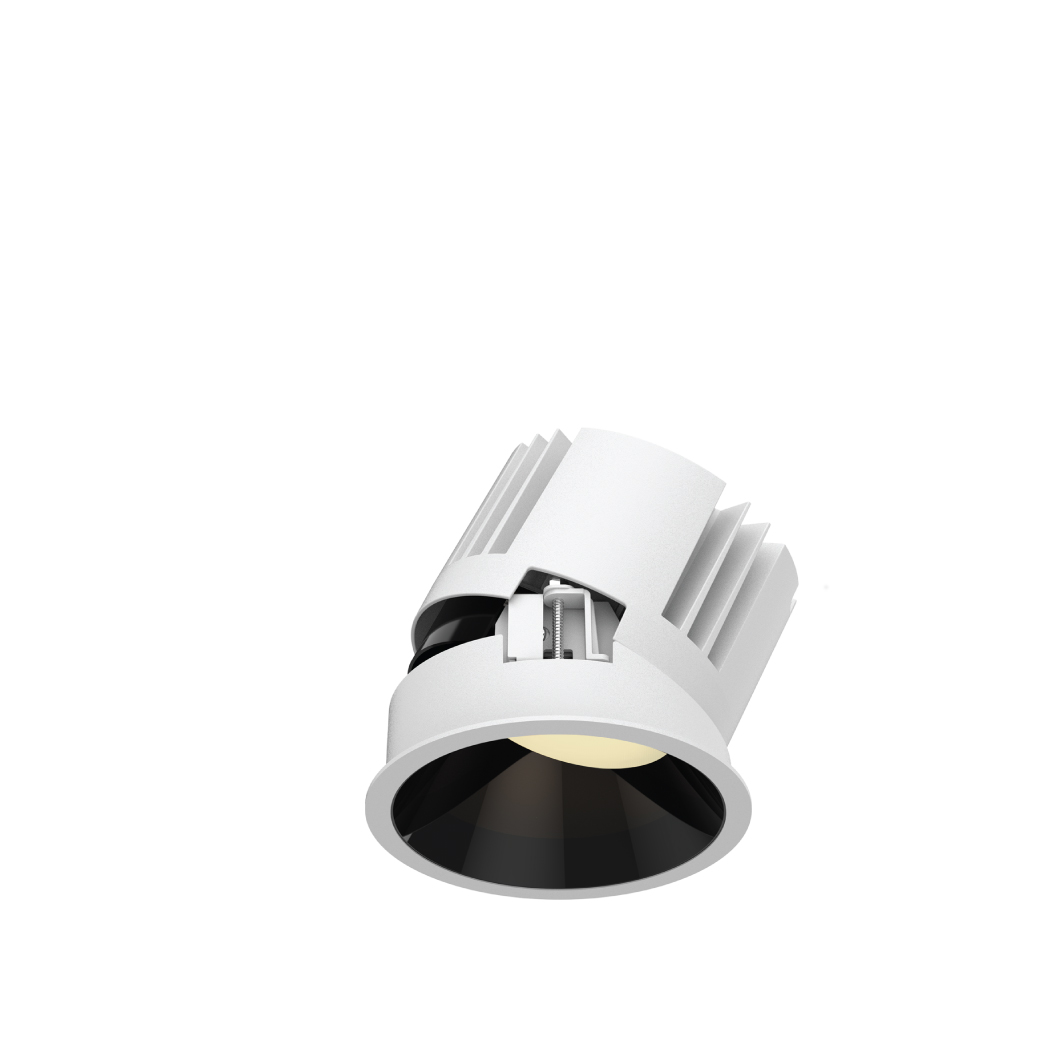

VOLTA II系列LED圆形窄边嵌入式调角筒灯，流线型外观，采用精准的透镜和黑镜反射器设计，保证超高光效的同时仍能达到极致的防眩效果，也可自由拆卸并更换反射器或光学配件，极大的提高了现场的便利性，主要适用于酒店及商业室内场所。
系列提供15°/24°/36°/55°四种光学配置，满足多样照明需求
实际点亮展示，光斑干净、柔和，无杂项光线
武商梦时代
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT | 3 3” | 1 Round Trim | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT | 3 3” | 1 Round Trim | LM13 COB 13W | N No Driver A DALI | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT | 4 4” | 1 Round Trim | LM13 COB 13W LM18 COB 18W | E On-Off D 0-10V Dimming | N 12° 1 18° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT | 4 4” | 1 Round Trim | LM18 COB 18W | N No Driver A DALI | N 12° 1 18° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
示例：DDT41-LM18-E230SWT
