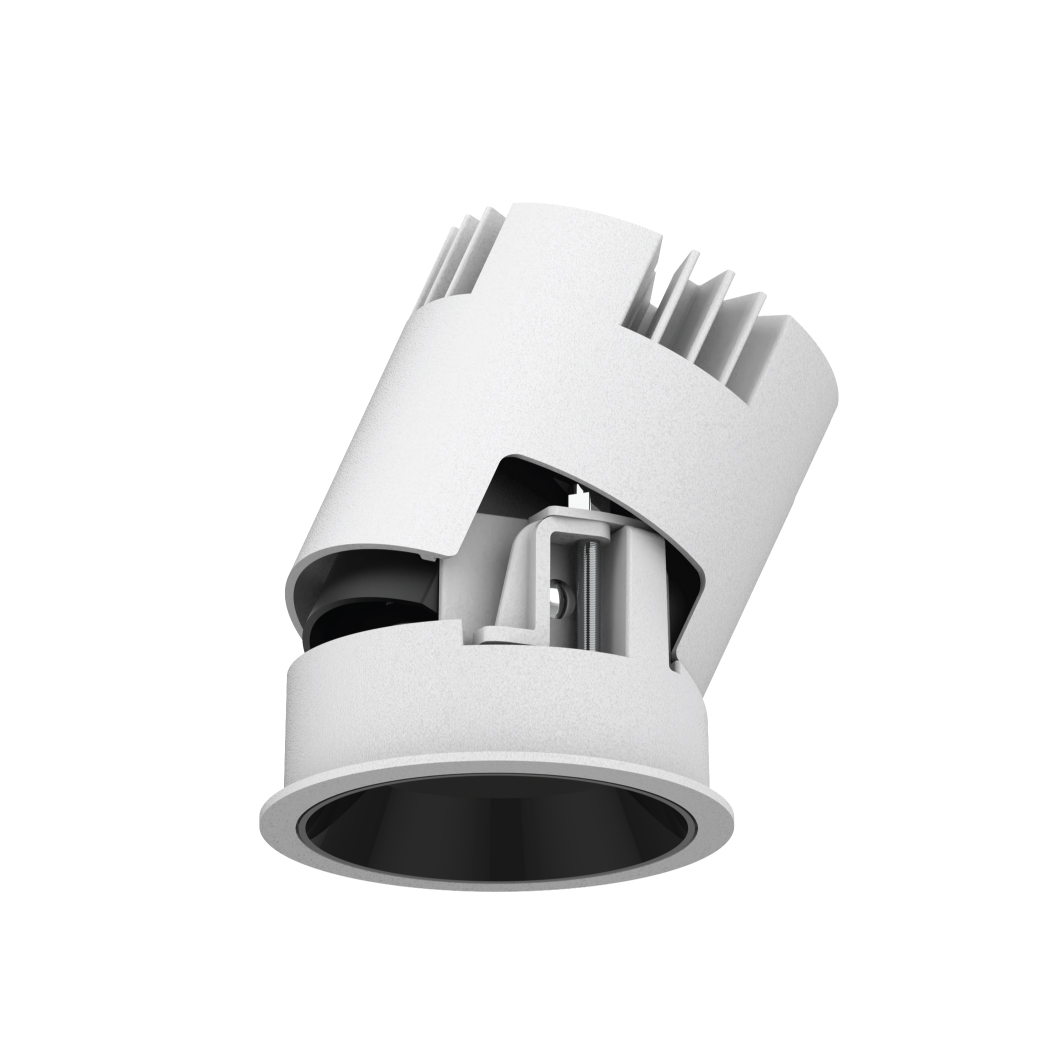

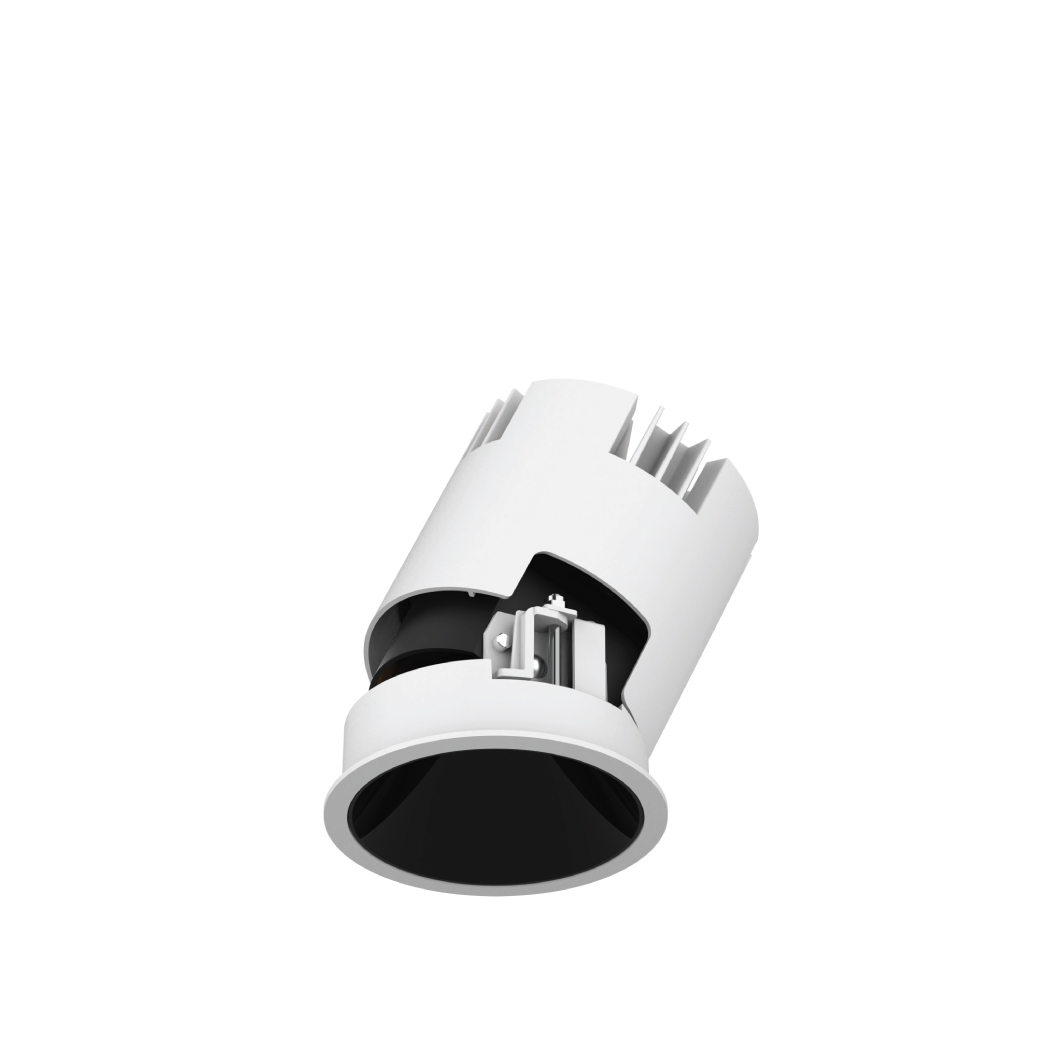

PLANA III 系列 LED 窄边嵌入式筒灯，外观简约流线，兼顾调角和下照功能（一灯多用），小尺寸大功率设计，采用精准的硅胶耐温透镜与防眩反射器组合设计，搭配可调防眩角的功能，可依不同场景灵活调整，广泛应用于酒店及商业室内场所。

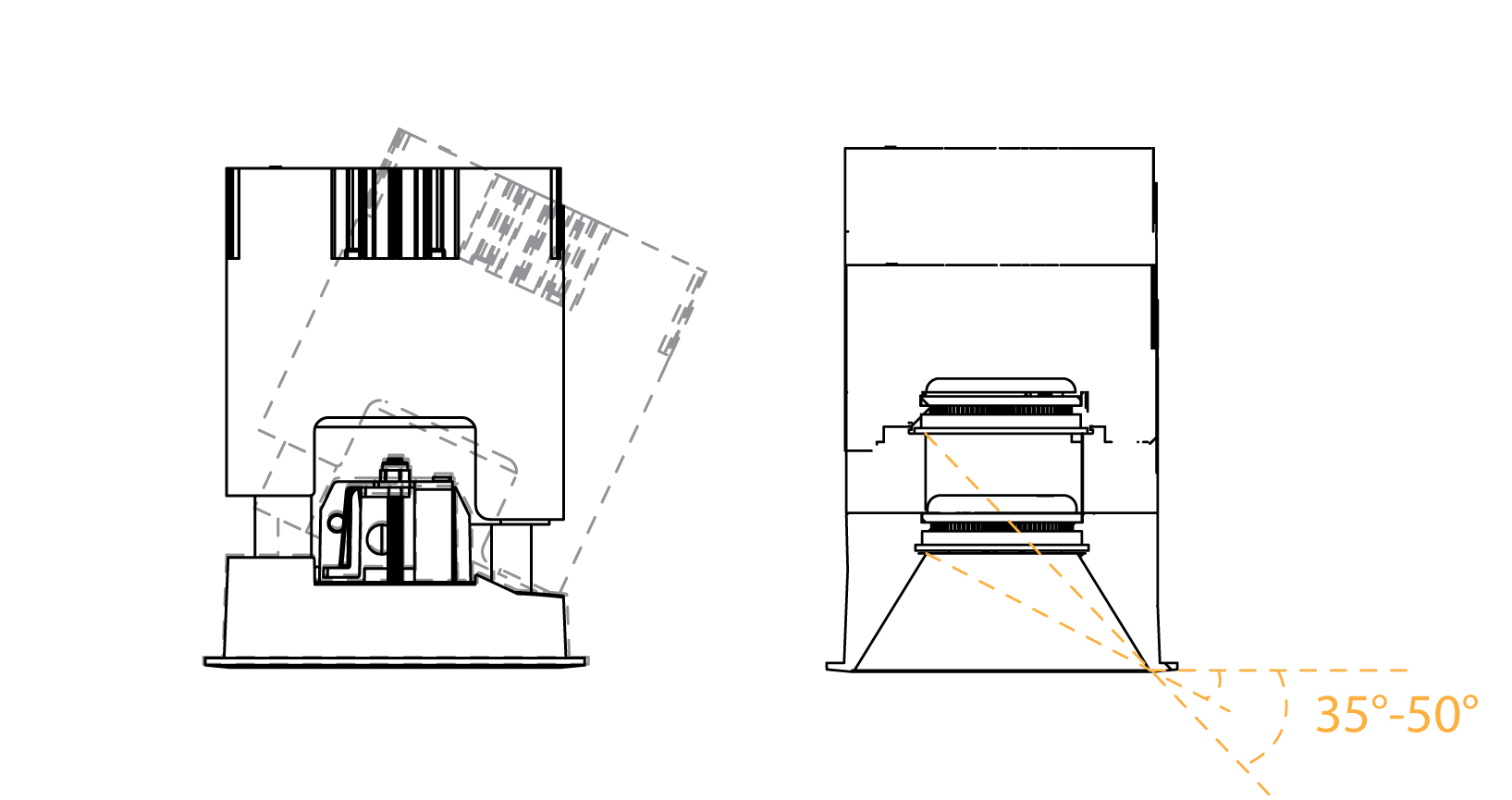

下照调角一体化设计，同时截光角支持 35° 至 50°范围调节，可提供不同程度的视觉舒适度。

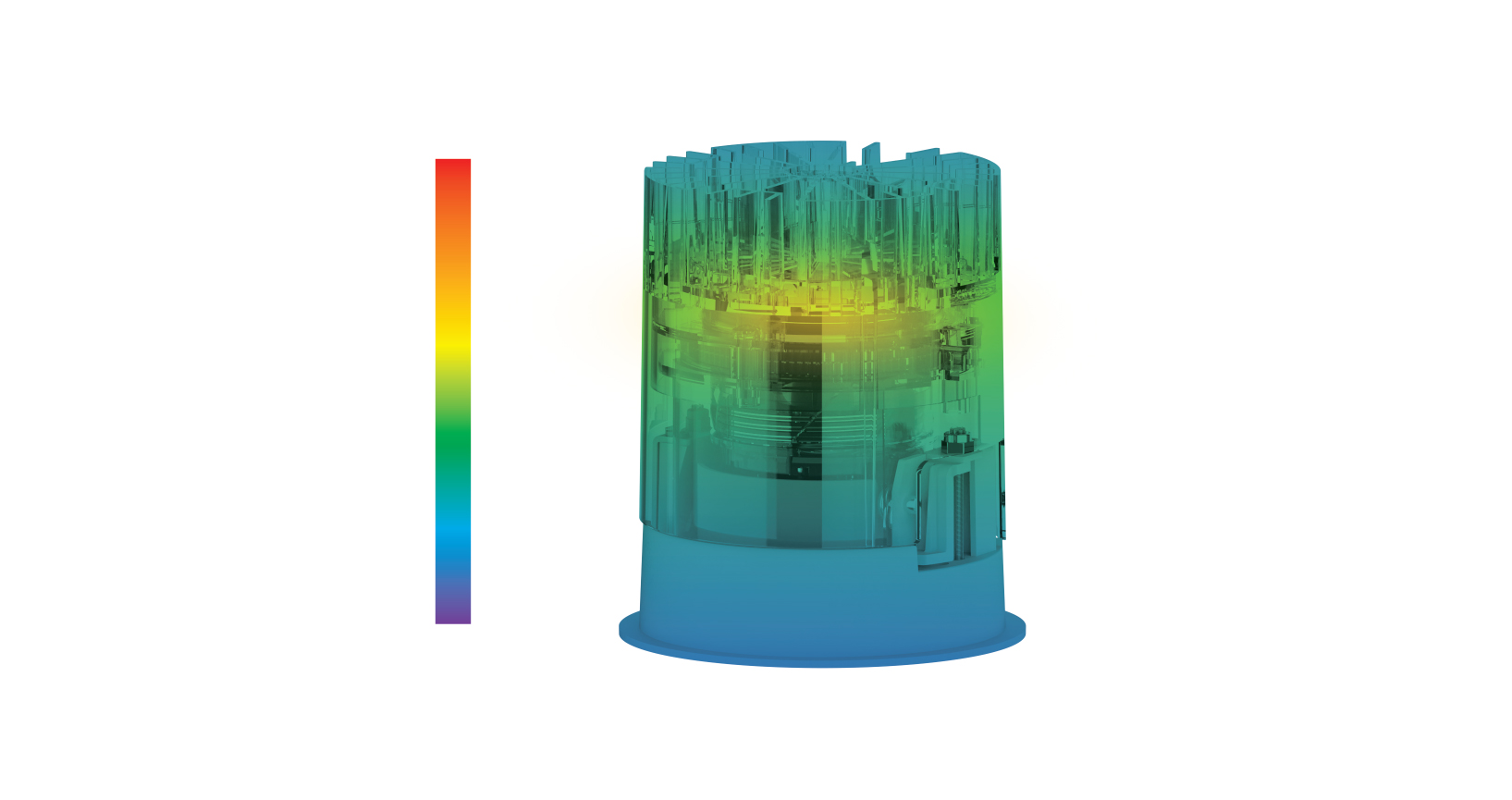

先进的光学与结构设计带来更佳的散热效果，使其能够承受更高的功率和温度，同时确保使用寿命。

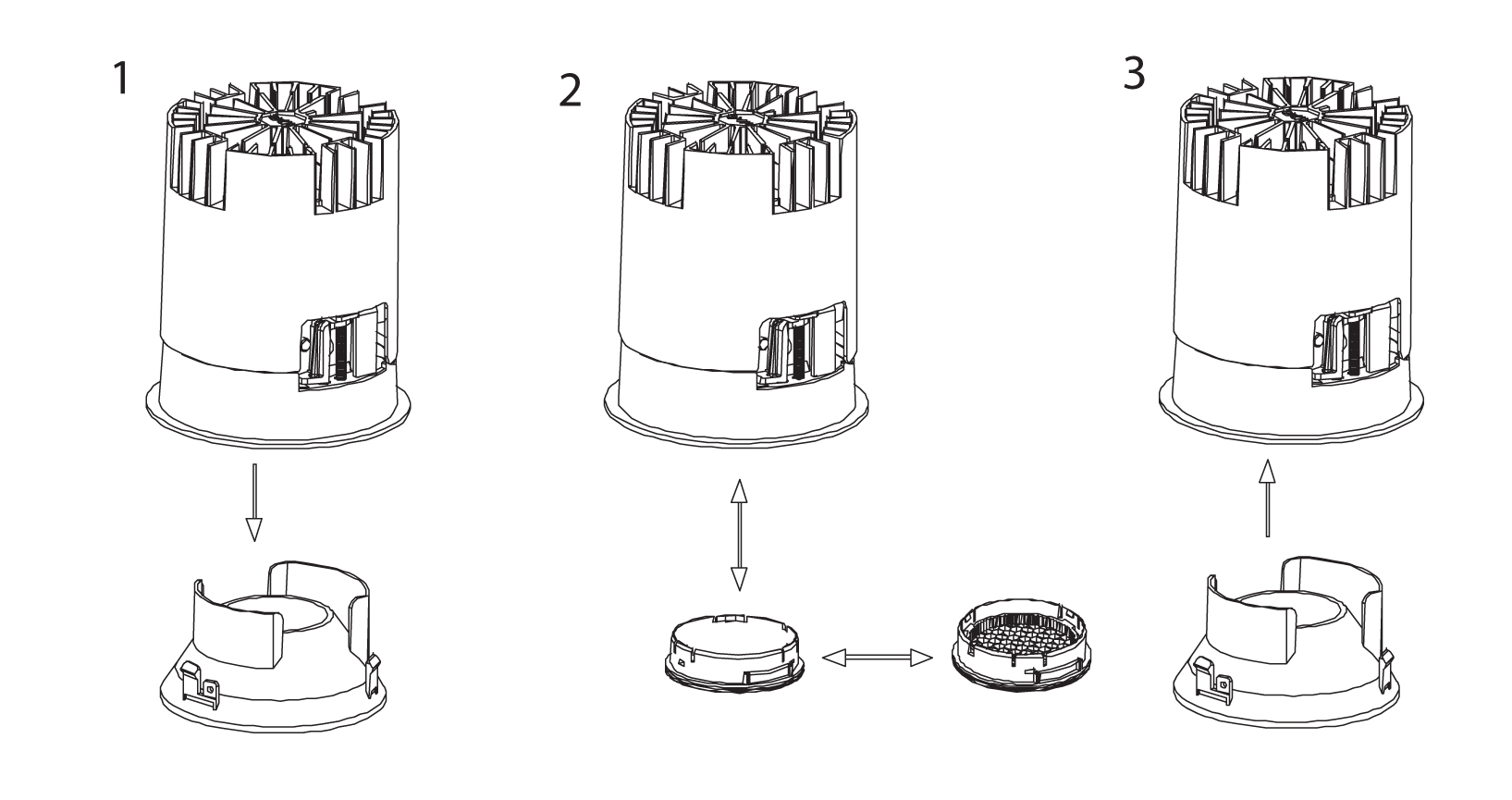

可手动更换光学配件或加装蜂窝网等防眩配件等。
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | |
DLP Downlight P series | 2 2” | 1 Round Trim | LM13 COB 13W LM10 COB 10W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black | |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | |
DLP Downlight P series | 2 2” | 1 Round Trim | LM13 COB 13W | A DALI N No Driver | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black | |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | |
DLP Downlight P series | 3 3” | 1 Round Trim | LM COB 20W LM15 COB 15W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black | |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | |
DLP Downlight P series | 3 3” | 1 Round Trim | LM20 COB 20W | A DALI N No Driver | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black | |
示例：DLP21-LM13E-230SWT
